Big Bud 16V-747 - engine

Big Bud 16V-747 tractor photo
1978
Four-wheel Drive (4WD) tractor
more Big Bud 16V-747 specifications...






Engine Detail:

 Detroit Diesel 16V92T
 turbocharged diesel
 16-cylinder
 liquid-cooled
 1472 ci [24.1 L]
Bore/Stroke:4.84x5.00 inches [123 x 127 mm]
Power (gross):960 hp [715.9 kW]
Compression:17:1
Rated RPM:2100
Torque:2500 lb-ft [3390.0 Nm]
Torque RPM:1200
Starter volts:24
Oil capacity:65 qts [61.5 L]
Coolant capacity:60 qts [56.8 L]

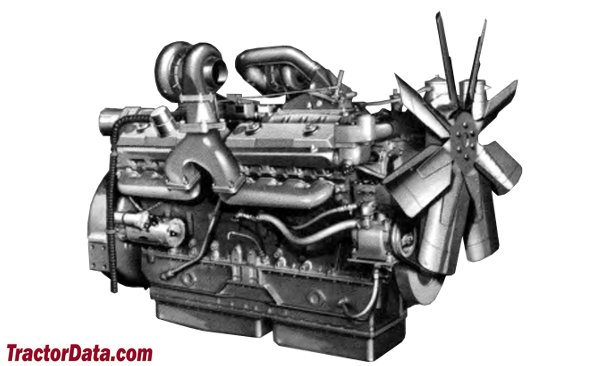

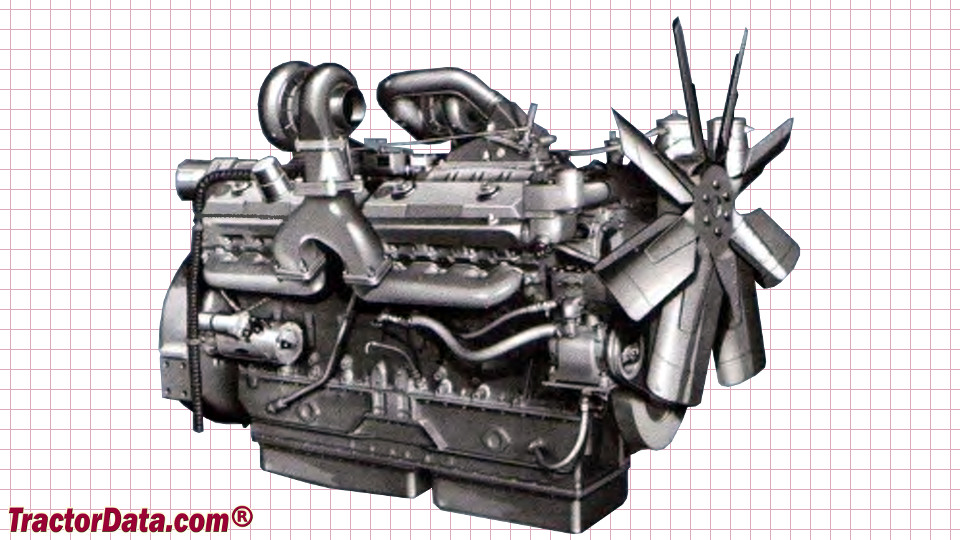

Big Bud 16V-747  engine photo
