International Harvester 6788 - transmission
| | Transmission: |
| Forward: | 12
|
| Reverse: | 6
|
| Oil capacity: | 94.5 qts [89.4 L]
|
| Comments: | Left lever selects high, low, or reverse range. Right lever selects gear. On-the-move powershift without the clutch between gear pairs 1/2, 3/4, and 5/6. Synchronized shift (with the clutch) from 2-to-3 and 4-to-5.
|

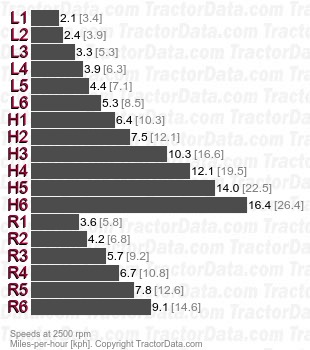

| Speeds: | With 18.4-38 tires.
| Gear | 2500 rpm | | L1 | 2.1mph [3.4kph] | | L2 | 2.4mph [3.9kph] | | L3 | 3.3mph [5.3kph] | | L4 | 3.9mph [6.3kph] | | L5 | 4.4mph [7.1kph] | | L6 | 5.3mph [8.5kph] | | H1 | 6.4mph [10.3kph] | | H2 | 7.5mph [12.1kph] | | H3 | 10.3mph [16.6kph] | | H4 | 12.1mph [19.5kph] | | H5 | 14.0mph [22.5kph] | | H6 | 16.4mph [26.4kph] | | R1 | 3.6mph [5.8kph] | | R2 | 4.2mph [6.8kph] | | R3 | 5.7mph [9.2kph] | | R4 | 6.7mph [10.8kph] | | R5 | 7.8mph [12.6kph] | | R6 | 9.1mph [14.6kph] |
|
