    International Harvester 6388 - transmission

    International Harvester 6388 tractor photo
    Production years:1981 - 1984
    Previous model:International Harvester 3388
    Tractor type:Farm/Agricultural tractor
    more International Harvester 6388 specifications...






    Transmission:

    Forward:16
    Reverse:8
    Oil capacity:94.5 qts [89.4 L]
    Comments:Left lever selects high, low, or reverse range. Right lever selects gear. On-the-move powershift without the clutch between gear pairs 1/2, 3/4, 5/6, and 7/8. Synchronized shift (with the clutch) from 2-to-3, 4-to-5, and 6-to-7.

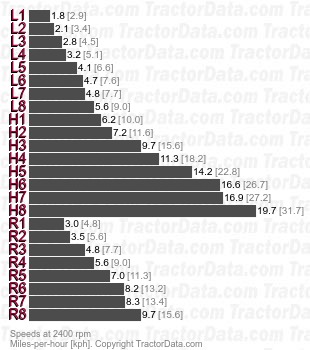

    Speeds:With 16.9-38 tires.

    Gear2400 rpm
    L11.8mph [2.9kph]
    L22.1mph [3.4kph]
    L32.8mph [4.5kph]
    L43.2mph [5.1kph]
    L54.1mph [6.6kph]
    L64.7mph [7.6kph]
    L74.8mph [7.7kph]
    L85.6mph [9.0kph]
    H16.2mph [10.0kph]
    H27.2mph [11.6kph]
    H39.7mph [15.6kph]
    H411.3mph [18.2kph]
    H514.2mph [22.8kph]
    H616.6mph [26.7kph]
    H716.9mph [27.2kph]
    H819.7mph [31.7kph]
    R13.0mph [4.8kph]
    R23.5mph [5.6kph]
    R34.8mph [7.7kph]
    R45.6mph [9.0kph]
    R57.0mph [11.3kph]
    R68.2mph [13.2kph]
    R78.3mph [13.4kph]
    R89.7mph [15.6kph]
