    International Harvester 1486 - transmission

    International Harvester 1486 tractor photo
    1976 - 1981   86 Series
    Row-Crop tractor
    Previous model:International Harvester 1466
    Larger:International Harvester 1586
    Smaller:International Harvester 1086
    more International Harvester 1486 specifications...






    Transmission:

    Transmission:Torque Amplifier
    Gears:16 forward and 8 reverse
    Oil capacity:108 qts [102.2 L]
    Oil type:
    IH Hy-Tran/B-6

    The transmission features three ranges (low, high, and reverse) with four gears (1-4) in each range. The Torque Amplifier (TA) provides an additional high/low selection for each speed. The range and gear can be shifted only when the tractor is stopped. The TA can be shifted while the tractor is in motion.

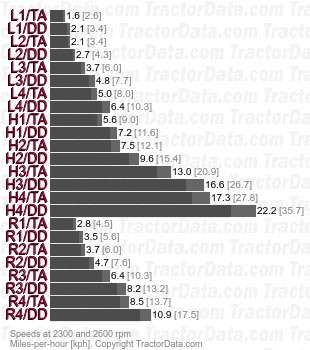

    Speeds:18.4-38 rear tires.
    1486 Torque Amplifier speeds
