International Harvester 1086 Engine


International Harvester 1086 tractor photo
1976 - 1981
86 Series
Row-Crop tractor
Series map:
Hydro 186
1086
1486
116.7hp*
146.0hp*
162.2hp*
*Estimated engine power for comparison only.
Engine Detail
International Harvester DT-414
turbocharged diesel
6-cylinder
liquid-cooled
Displacement414 ci
6.8 L
Bore/Stroke4.30x4.75 inches
109 x 121 mm
Air cleanerdual dry element
Rated RPM2400
Coolant capacity25 qts
23.7 L
Engine Oil

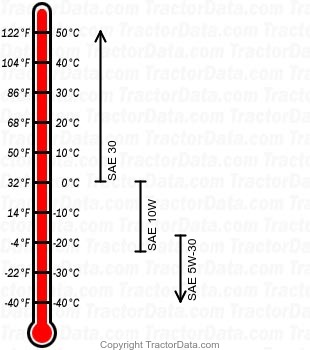

1086 diesel engine oil chart
Oil capacity20 qts
18.9 L
