International Harvester 986 Tests


International Harvester 986 tractor photo
1976 - 1981
86 Series
Row-Crop tractor
Series map:
886
986
Hydro 186
95.7hp*
117.4hp*
116.7hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1255

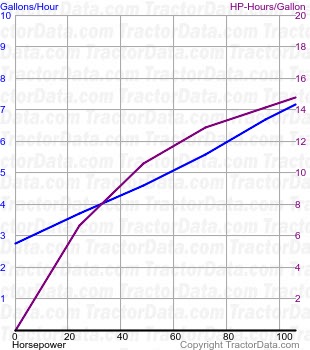

986 fuel use from test 1255
Nebraska Tractor Test 1255
Diesel Torque Amplifier 2WD
September 15 - 29, 1977
Link: Nebraska Tractor Test 1255 file
PTO performance
Power at rated engine speed105.68 hp
78.8 kW
Fuel use7.2 gal/hour
27.3 l/hour
Power at rated PTO speed105.68 hp
78.8 kW
Fuel use6.8 gal/hour
25.7 l/hour
Drawbar performance
Max power90.15 hp
67.2 kW
Fuel use7.1 gal/hour
26.9 l/hour
Gear 4-Low-Direct used for power test.
Max pull12,176 lbs
5523 kg
Gear 2-Low-Direct used for pull test.
