    International Harvester 786 - engine

    International Harvester 786 tractor photo I&T Manual: IH 766, 826, 966, 1026, 1066, 454, 464, 484, 574, 584, 674, 786, 886, 986, 1086
    I&T Shop Manual
    Production years:1980 - 1981
    Next model:International Harvester 3088
    Tractor type:Farm/Agricultural tractor
    more International Harvester 786 specifications...






    Engine:

    Manufacturer:International Harvester
    Model:D358
    Fuel:diesel
    Cylinders:6
    Valves:-unknown-
    Bore/Stroke:3.875x5.0625 inches [98 x 129 mm]
    Displacement:358 ci [5.9 L]
    Cooling:liquid
    Coolant:24 qts [22.7 L]
    Air cleaner:dual dry element
    Compression:-unknown-
    Rated RPMs:2400
    Starter type:-unknown-
    Oil capacity:12 qts [11.4 L]

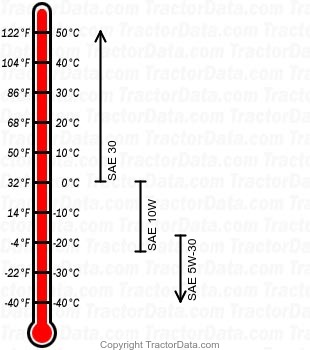

    Oil type:
    32oF [0oC]↑ : SAE 30
    -10o↔32oF [-23o↔0oC]   : SAE 10W
    0oF [-17oC]↓ : SAE 5W-30
