International Harvester 504 Transmission


International Harvester 504 tractor photo
1961 - 1968
Utility tractor
Series map:
404
504
606
40.8hp*
51.1hp*
55.6hp*
*Estimated engine power for comparison only.
Transmission options
5-speed unsynchronized gear
10-speed two-speed power shift
Transmission
Typeunsynchronized gear
Gears5 forward and 1 reverse
Clutch267mm dry disc
Speeds
With 13.6-28 rear tires.

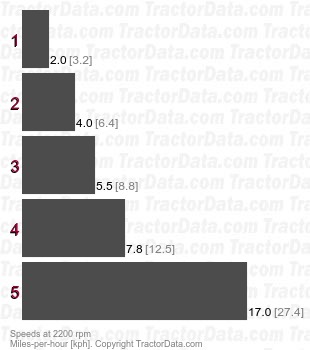

504  unsynchronized gear speeds
Transmission
TransmissionTorque Amplifier
Typetwo-speed power shift
Gears10 forward and 2 reverse
Clutchdry disc
Speeds
With 13.6-28 rear tires.

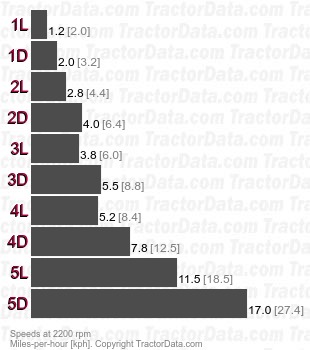

504 Torque Amplifier two-speed power shift speeds
