    International Harvester 444 - transmission

    International Harvester 444 tractor photo
    I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual for the
    International Harvester 444
    Production years:1967 - 1975
    Tractor type:Farm/Agricultural tractor
    more International Harvester 444 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:8
    Reverse:2
    Oil capacity:-unknown-
    Comments:Four forward gears plus reverse with high and low ranges.

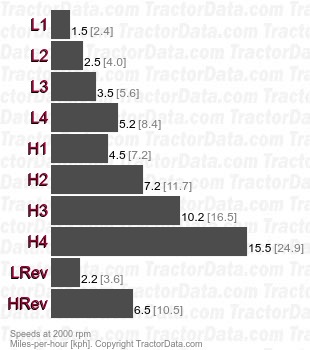

    Speeds:With 13.6-28 rear tires.

    Gear2000 rpm
    L11.5mph [2.4kph]
    L22.5mph [4.0kph]
    L33.5mph [5.6kph]
    L45.25mph [8.4kph]
    H14.5mph [7.2kph]
    H27.25mph [11.7kph]
    H310.25mph [16.5kph]
    H415.5mph [24.9kph]
    LRev2.25mph [3.6kph]
    HRev6.5mph [10.5kph]



    Transmission:

    Transmission:shuttle
    Forward:8
    Reverse:8
    Oil capacity:-unknown-
    Comments:Four gears with high and low ranges, forward/reverse shuttle lever.

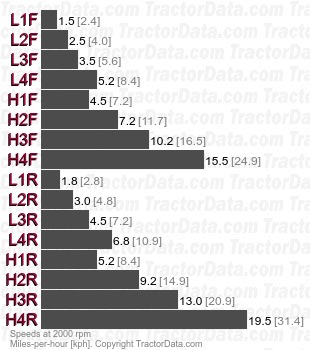

    Speeds:With 13.6-28 rear tires.

    Gear2000 rpm
    L1F1.5mph [2.4kph]
    L2F2.5mph [4.0kph]
    L3F3.5mph [5.6kph]
    L4F5.25mph [8.4kph]
    H1F4.5mph [7.2kph]
    H2F7.25mph [11.7kph]
    H3F10.25mph [16.5kph]
    H4F15.5mph [24.9kph]
    L1R1.75mph [2.8kph]
    L2R3.0mph [4.8kph]
    L3R4.5mph [7.2kph]
    L4R6.75mph [10.9kph]
    H1R5.25mph [8.4kph]
    H2R9.25mph [14.9kph]
    H3R13mph [20.9kph]
    H4R19.5mph [31.4kph]
