Tractors > International Harvester > 424

International Harvester 424 - tests

International Harvester 424 tractor photo
1964 - 1967
Utility tractor
more International Harvester 424 specifications...






Nebraska Tractor Test 908:

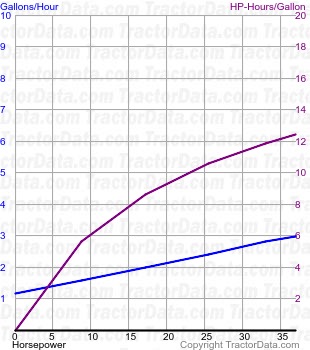

424 fuel use from test 908
Test Date:September 8 - 15, 1965
Type:Gasoline 8-speed 2WD
PTO power (rated engine speed):36.97 hp [27.6 kW]
PTO fuel use (engine speed):3.0 gal/hour [11.4 l/hour]
Drawbar power (max):31.44 hp [23.4 kW]
Drawbar fuel use (max):3.0 gal/hour [11.4 l/hour]
Drawbar pull (max):5,282 lbs [2395 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 911:

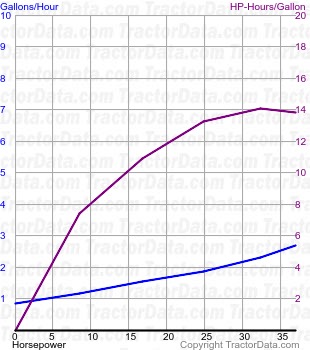

424 fuel use from test 911
Test Date:September 16 - 23, 1965
Type:Diesel 8-speed 2WD
PTO power (rated engine speed):36.91 hp [27.5 kW]
PTO fuel use (engine speed):2.6 gal/hour [9.8 l/hour]
Drawbar power (max):31.90 hp [23.8 kW]
Drawbar fuel use (max):2.8 gal/hour [10.6 l/hour]
Drawbar pull (max):5,374 lbs [2437 kg]
Max pull gear:1
Test report:PDF file
