Tractors > International Harvester > B-414
      -Brand search:


    International Harvester B-414 - tests

    International Harvester B-414 tractor photo  I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual
    Production years:1961 - 1966
    Next model:International Harvester B-275
    Tractor type:Farm/Agricultural tractor
    more International Harvester B-414 specifications...

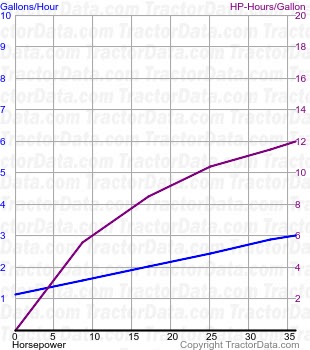

    Nebraska Tractor Test 817:

    Test Date:May 3 - 18, 1962
    Engine:gasoline
    PTO power (rated engine speed):36.46 hp [27.2 kW]
    PTO fuel use (engine speed):3.0 gal/hour [11.4 l/hour]
    Drawbar power (max):30.86 hp [23.0 kW]
    Drawbar fuel use (max):3.0 gal/hour [11.4 l/hour]

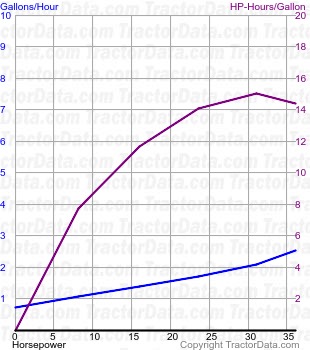

    Nebraska Tractor Test 827:

    Test Date:September 27 - October 12, 1962
    Engine:diesel
    PTO power (rated engine speed):35.99 hp [26.8 kW]
    PTO fuel use (engine speed):2.5 gal/hour [9.5 l/hour]
    Drawbar power (max):31.73 hp [23.7 kW]
    Drawbar fuel use (max):2.6 gal/hour [9.8 l/hour]
