    International Harvester 404 - transmission

    International Harvester 404 tractor photo  I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual
    1961 - 1968
    Utility tractor
    Larger:International Harvester 504
    more International Harvester 404 specifications...






    Transmission:

    Gears:4 forward and 1 reverse
    Clutch:9-inch dry disc
    Speeds:With 12.4-28 rear tires.

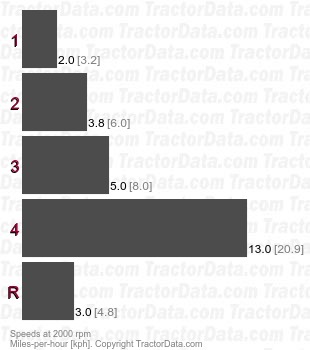

    404   speeds


    Transmission:

    Transmission:Dual-Range
    Gears:8 forward and 2 reverse
    Clutch:9-inch dry disc
    Add high range to basic four-speed transmission.
    Speeds:With 12.4-28 rear tires.

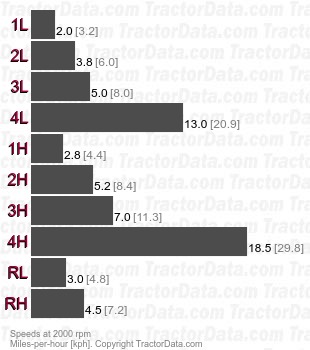

    404 Dual-Range  speeds


    Transmission:

    Type:manual shuttle
    Gears:4 forward and reverse
    Clutch:9-inch dry disc
    Speeds:With 12.4-28 rear tires.

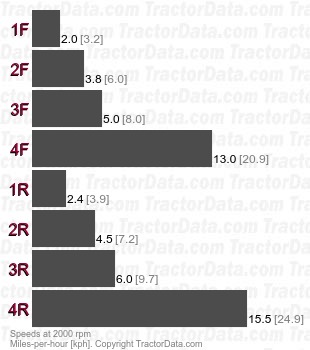

    404  manual shuttle speeds
