    International Harvester 350 - transmission

    No photo available
    Production years:1956 - 1958
    Previous model:International Harvester 300
    Tractor type:Farm/Agricultural tractor
    more International Harvester 350 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:5
    Reverse:1
    Oil capacity:-unknown-
    Speeds:With 10.00x28 utility. High-clearance is about 3% slower, wheatland is about 3% faster.

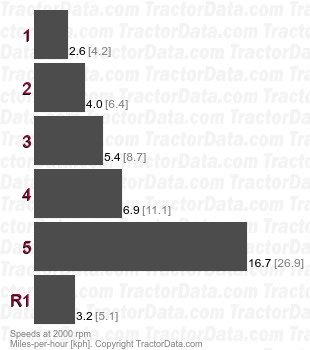

    Gear2000 rpm
    12.6mph [4.2kph]
    24.0mph [6.4kph]
    35.4mph [8.7kph]
    46.9mph [11.1kph]
    516.7mph [26.9kph]
    R13.2mph [5.1kph]



    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:-unknown-
    Comments:The Torque Amplifier (TA) provides a clutchless shift-on-the-move between normal, direct drive (DD) and the TA. By engaging the TA, tractor ground speed is reduced and torque is increased.
    Speeds:With 10.00x28 utility. High-clearance is about 3% slower, wheatland is about 3% faster.

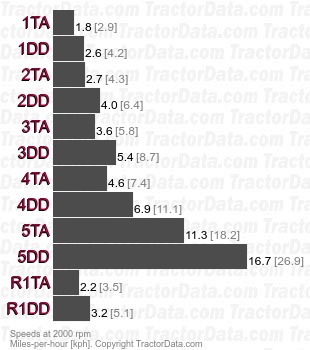

    Gear2000 rpm
    1TA1.8mph [2.9kph]
    1DD2.6mph [4.2kph]
    2TA2.7mph [4.3kph]
    2DD4.0mph [6.4kph]
    3TA3.6mph [5.8kph]
    3DD5.4mph [8.7kph]
    4TA4.6mph [7.4kph]
    4DD6.9mph [11.1kph]
    5TA11.3mph [18.2kph]
    5DD16.7mph [26.9kph]
    R1TA2.2mph [3.5kph]
    R1DD3.2mph [5.1kph]
