Tractors > International Harvester > 350

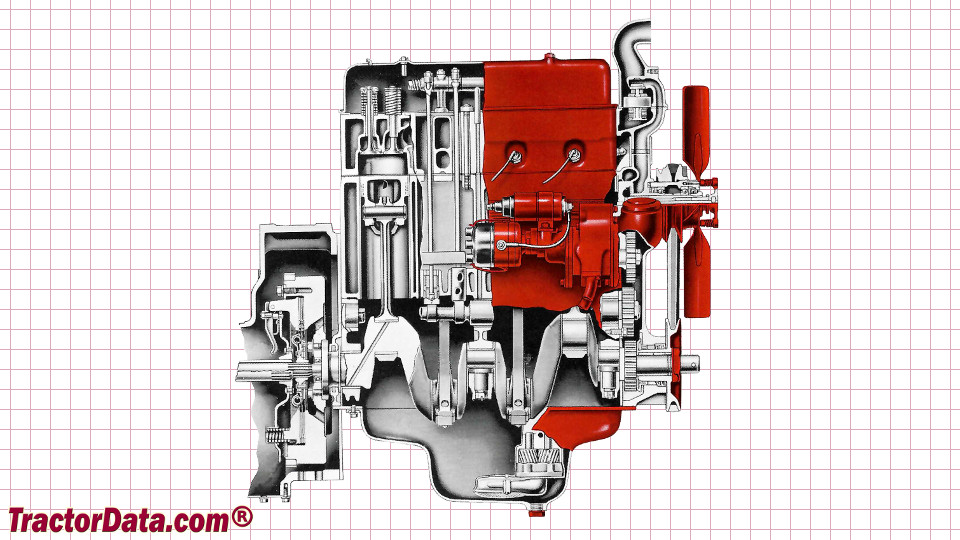

International Harvester 350 - engine

International Harvester 350 tractor photo
1956 - 1958
Utility tractor
Previous model:International Harvester 300
Series back:International Harvester 330
more International Harvester 350 specifications...






Engine Detail:

 Continental D193
 diesel
 4-cylinder
 liquid-cooled
 193 ci [3.2 L]
Bore/Stroke:3.75x4.375 inches [95 x 111 mm]
Air cleaner:oil bath
Compression:16.87:1
Rated RPM:2000
Starter volts:12
Coolant capacity:16 qts [15.1 L]


Engine Detail:

 International Harvester C175
 gasoline
 4-cylinder
 liquid-cooled vertical I-head
 175 ci [2.9 L]
Bore/Stroke:3.625x4.25 inches [92 x 108 mm]
Compression:7.0:1
Rated RPM:2000
Starter volts:6
Coolant capacity:18 qts [17.0 L]


Engine Detail:

 International Harvester C175
 LP gas
 4-cylinder
 liquid-cooled
 175 ci [2.9 L]
Bore/Stroke:3.625x4.25 inches [92 x 108 mm]
Compression:9.0:1
Rated RPM:2000
Starter volts:12
Coolant capacity:16 qts [15.1 L]
