    International Harvester 340 - transmission

    International Harvester 340 tractor photo
    I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual for the
    International Harvester 340
    Production years:1958 - 1963
    Tractor type:Farm/Agricultural tractor
    more International Harvester 340 specifications...






    Transmission:

    Transmission:sliding gear
    Forward:5
    Reverse:1
    Oil capacity:40 qts [37.9 L]

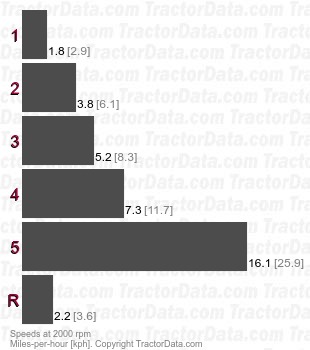

    Speeds:With 11-28 rear tires

    Gear2000 rpm
    11.79mph [2.9kph]
    23.82mph [6.1kph]
    35.15mph [8.3kph]
    47.30mph [11.7kph]
    516.11mph [25.9kph]
    R2.21mph [3.6kph]



    Transmission:

    Transmission:Torque Amplifier
    Forward:10
    Reverse:2
    Oil capacity:40 qts [37.9 L]

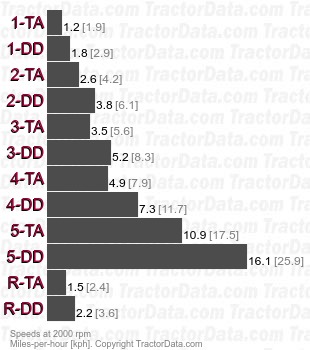

    Speeds:
    Gear2000 rpm
    1-TA1.21mph [1.9kph]
    1-DD1.79mph [2.9kph]
    2-TA2.58mph [4.2kph]
    2-DD3.82mph [6.1kph]
    3-TA3.48mph [5.6kph]
    3-DD5.15mph [8.3kph]
    4-TA4.93mph [7.9kph]
    4-DD7.30mph [11.7kph]
    5-TA10.87mph [17.5kph]
    5-DD16.11mph [25.9kph]
    R-TA1.49mph [2.4kph]
    R-DD2.21mph [3.6kph]



    Transmission:

    Transmission:Fast Reverser
    Forward:5
    Reverse:5
    Oil capacity:40 qts [37.9 L]

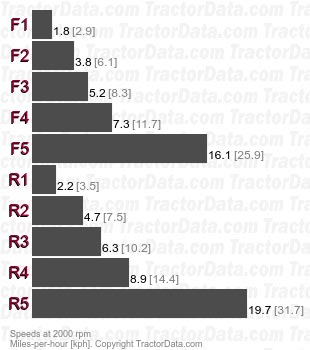

    Speeds:
    Gear2000 rpm
    F11.79mph [2.9kph]
    F23.82mph [6.1kph]
    F35.15mph [8.3kph]
    F47.30mph [11.7kph]
    F516.11mph [25.9kph]
    R12.19mph [3.5kph]
    R24.68mph [7.5kph]
    R36.31mph [10.2kph]
    R48.94mph [14.4kph]
    R519.73mph [31.7kph]
