Tractors > International Harvester > B-275

International Harvester B-275 Engine



International Harvester B-275 tractor photo
1958 - 1968
Utility tractor
Series map:
B-250
B-275
B-414
30.0hp
38.0hp
43.5hp
Engine options
International Harvester 2.3L 4-cyl diesel
International Harvester 2.3L 4-cyl gasoline
Engine Detail
International Harvester BD-144
diesel
4-cylinder
liquid-cooled
Displacement143.1 ci
2.3 L
Bore/Stroke3.375x4.00 inches
86 x 102 mm
Power38 hp
28.3 kW
Air cleaneroil bath
Compression19.3:1
Rated RPM1875
Torque115 lb-ft
155.9 Nm
Torque RPM1300
Starter volts12
Oil capacity6.3 qts
6.0 L
Coolant capacity10.8 qts
10.2 L

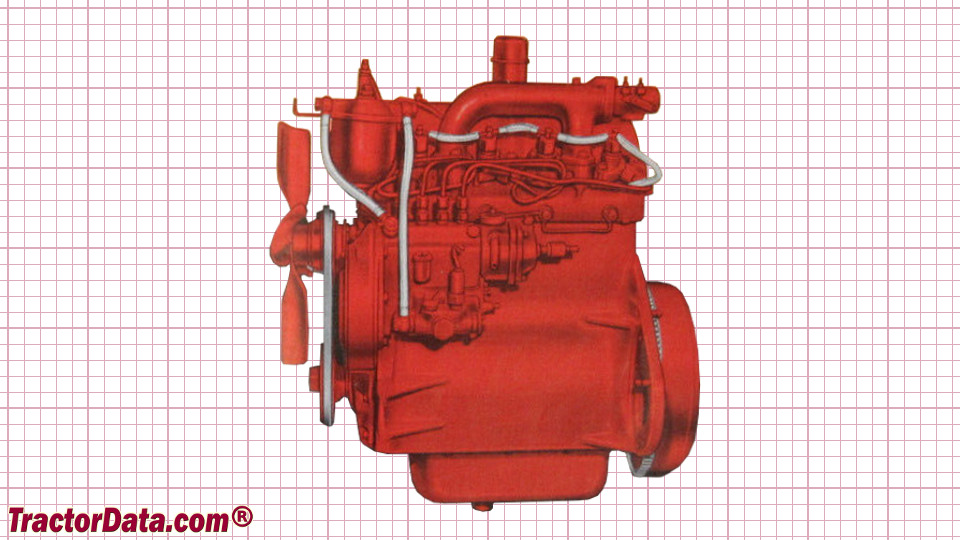

International Harvester B-275 Engine
International Harvester B-275 engine image
Engine Detail
International Harvester BC-144
gasoline
4-cylinder
liquid-cooled
Displacement143.1 ci
2.3 L
Bore/Stroke3.375x4.00 inches
86 x 102 mm
Power35 hp
26.1 kW
Air cleaneroil bath
Compression6.3:1
Rated RPM2000
