Tractors > International Harvester > Cub 184 Lo-Boy

International Harvester Cub 184 Lo-Boy - transmission

International Harvester Cub 184 Lo-Boy tractor photo
1977 - 1980
Compact Utility tractor
Previous model:International Harvester 185 Lo-Boy
more International Harvester Cub 184 Lo-Boy specifications...






Transmission:

Type:unsynchronized gear
Gears:3 forward and 1 reverse
Clutch:mechanical dry disc
Oil capacity:7 qts [6.6 L]
Speeds:
Cub 184 Lo-Boy  unsynchronized gear speeds

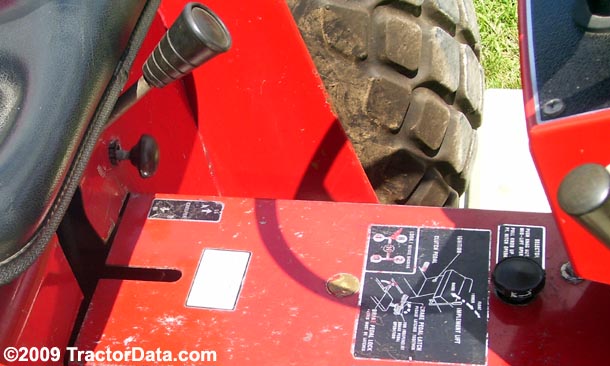

International Harvester Cub 184 Lo-Boy  transmission photo



Transmission:

Type:creeper
Gears:6 forward and 2 reverse
Optional creeper range for the standard transmission.
