    Farmall H - tests

    Farmall H tractor photo I&T Manual: IH A, B, C, MTA, H, M, MD, Cub, MT, W4, W6, D9
    I&T Shop Manual
    1939 - 1953
    Row-Crop tractor
    Previous model:Farmall F-20
    Next model:Farmall Super H
    Larger:Farmall M
    Smaller:Farmall C
    more Farmall H specifications...






    Nebraska Tractor Test :

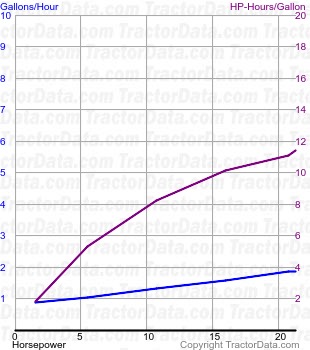

    H fuel use from test
    Test Date:October 5 - 11, 1939
    Type:Gasoline 5-speed 2WD
    Belt power (max):26.20 hp [19.5 kW]
    Belt fuel use (max):2.3 gal/hour [8.7 l/hour]
    Drawbar power (max):24.17 hp [18.0 kW]
    Drawbar pull (max):3,603 lbs [1634 kg]
    Max pull gear:1
    Test report:PDF file


    Nebraska Tractor Test 334:

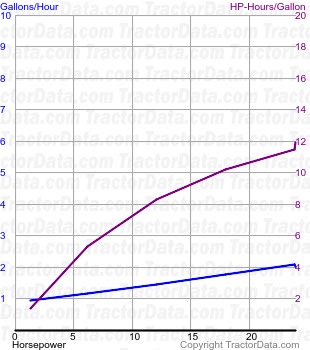

    H fuel use from test 334
    Test Date:November 6 - 11, 1939
    Type:Distillate 5-speed 2WD
    Belt power (max):23.3 hp [17.4 kW]
    Drawbar power (max):21.4 hp [16.0 kW]
    Drawbar pull (max):3,169 lbs [1437 kg]
    Max pull gear:1
    Test report:PDF file
