Ford 6710 Transmission


Ford 6710 tractor photo
1982 - 1987
10 Series
Row-Crop tractor
Series map:
6610
6710
7610
78.5hp
78.5hp
97.0hp
Transmissions overview
16-speed partial power shift
16-speed synchromesh partial power shift
Transmission
TransmissionDual Power
Typepartial power shift
Gears16 forward and 4 reverse
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.
Speeds
With 18.4x34 rear tires.

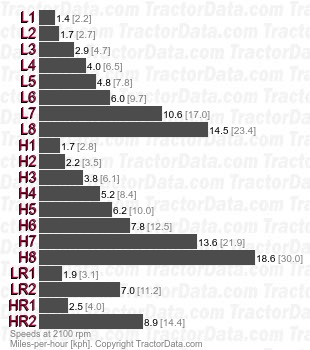

6710 Dual Power partial power shift speeds
Transmission
TransmissionDual Power
Typesynchromesh partial power shift
Gears16 forward and 8 reverse
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.
Speeds
With 18.4x34 rear tires.

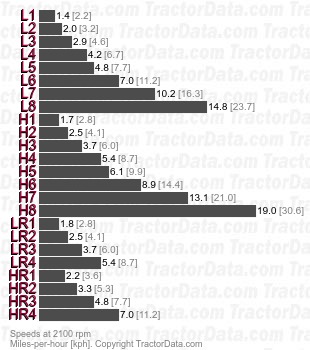

6710 Dual Power synchromesh partial power shift speeds
