Ford 6710 Tests


Ford 6710 tractor photo
1982 - 1987
10 Series
Row-Crop tractor
Series map:
6610
6710
7610
78.5hp
78.5hp
97.0hp
Tractor Tests
NTTL 1430: diesel 16x4 4WD
NTTL 1431: diesel 16x8 2WD
Nebraska Tractor Test 1430

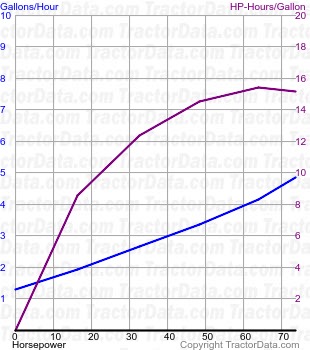

6710 fuel use from test 1430
Nebraska Tractor Test 1430
Diesel 16x4 4WD
April 1 - 21, 1982
Link: Nebraska Tractor Test 1430 file
PTO performance
Power at rated engine speed72.13 hp
53.8 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated PTO speed68.27 hp
50.9 kW
Fuel use4.4 gal/hour
16.7 l/hour
Drawbar performance
Max power60.96 hp
45.5 kW
Fuel use4.5 gal/hour
17.0 l/hour
Gear 6L used for power test.
Max pull7,887 lbs
3577 kg
Gear 3L used for pull test.
Nebraska Tractor Test 1431

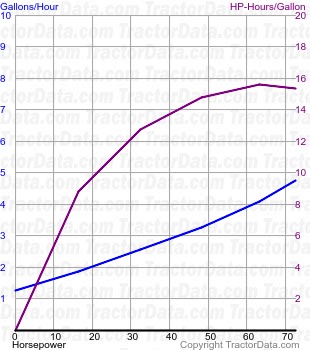

6710 fuel use from test 1431
Nebraska Tractor Test 1431
Diesel 16x8 2WD
April 13 - May 4, 1982
Link: Nebraska Tractor Test 1431 file
PTO performance
Power at rated engine speed72.30 hp
53.9 kW
Fuel use4.8 gal/hour
18.2 l/hour
Power at rated PTO speed15.43 hp
11.5 kW
Fuel use1.0 gal/hour
3.8 l/hour
Drawbar performance
Max power61.37 hp
45.8 kW
Fuel use4.7 gal/hour
17.8 l/hour
Gear 6L used for power test.
Max pull7,948 lbs
3605 kg
Gear 3L used for pull test.
