    Ford 5000 - transmission

    Ford 5000 tractor photo FO-201 I&T Manual: Ford Dextra, Major, Commander, 5000, 6000, 8000, 9000, TW
    I&T Shop Manual
    1965 - 1976
    Farm/Agricultural tractor
    Previous model:Ford 5000 Diesel
    Next model:Ford 6600
    Larger:Ford Commander 6000
    more Ford 5000 specifications...






    Transmission:

    Transmission:sliding gear
    Gears:8 forward and 2 reverse
    Oil capacity:10.8 qts [10.2 L]
    Oil type:
    M-4864-A

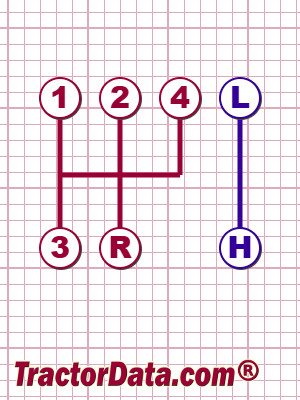

    Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.
    Speeds:

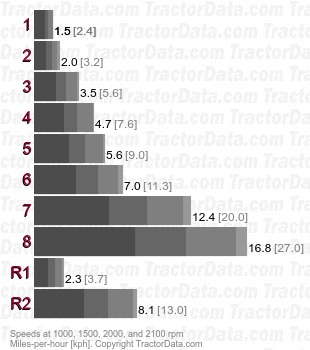

    5000 sliding gear speeds


    Transmission:

    Transmission:Select-O-Speed
    Type:full power shift
    Gears:10 forward and 2 reverse
    Oil capacity:11.8 qts [11.2 L]
    Oil type:
    M2C41

    Transmission can shifted between gears while moving.
    Speeds:

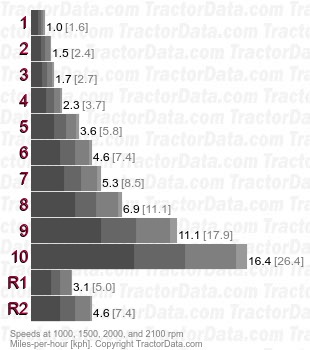

    5000 Select-O-Speed full power shift speeds


    Transmission:

    Transmission:Dual Power
    Type:partial power shift
    Gears:16 forward and 4 reverse
    Dual Power adds a power shift underdrive to the basic 8-speed transmission.
    Ford 5000 Dual Power transmission photo
