    Ford 3610 - transmission

    Ford 3610 tractor photo I&T Manual: Ford 2310, 2600, 2610, 3600, 3610, 4100, 4110, 4600
    I&T Shop Manual
    1982 - 1983
    Previous model:Ford 3600
    Smaller:Ford 2610
    more Ford 3610 specifications...






    Transmission:

    Transmission:Dual-range
    Gears:8 forward and 2 reverse
    Oil capacity:12.2 qts [11.5 L]
    Speeds:With 13.6x28 rear tires.
    3610 Dual-range speeds


    Transmission:

    Type:synchromesh
    Gears:8 forward and 4 reverse
    Oil capacity:9.9 qts [9.4 L]
    Speeds:With 13.6x28 rear tires.

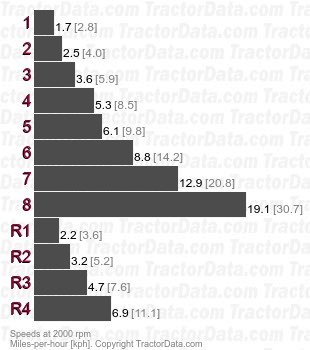

    3610 synchromesh speeds
