| 1979 - 1983 |
TW Series | Row-Crop tractor |
|
Series map:
TW-10
TW-20
123.0hp
144.5hp
Transmission options |
16-speed |
8-speed |
Transmission |
Transmission | Dual Power
|
Gears | 16 forward and 4 reverse
|
Clutch | 330mm cerametallic disc
|
Oil capacity | 79 qts 74.8 L
|
The Dual Power pedal is located to the right of the clutch pedal. Pushing heel-down on the pedal engages an underdrive. The Dual Power may be shifted on the move. |

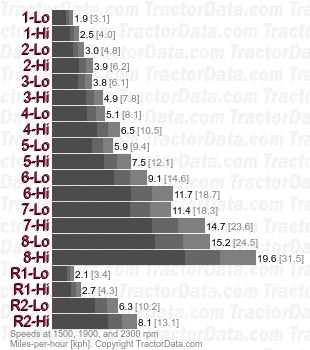

Speeds |
18.4x38 rear tires. |
|
Transmission |
Gears | 8 forward and 2 reverse
|
Clutch | 330mm cerametallic disc
|
Oil capacity | 73 qts 69.1 L
|
Left lever selects high, low, or park. Right lever selects one of four forward gears or reverse. Tractor must be stopped before changing gears. |
Speeds |
18.4x38 rear tires. |
|
