    Ford 8N - engine

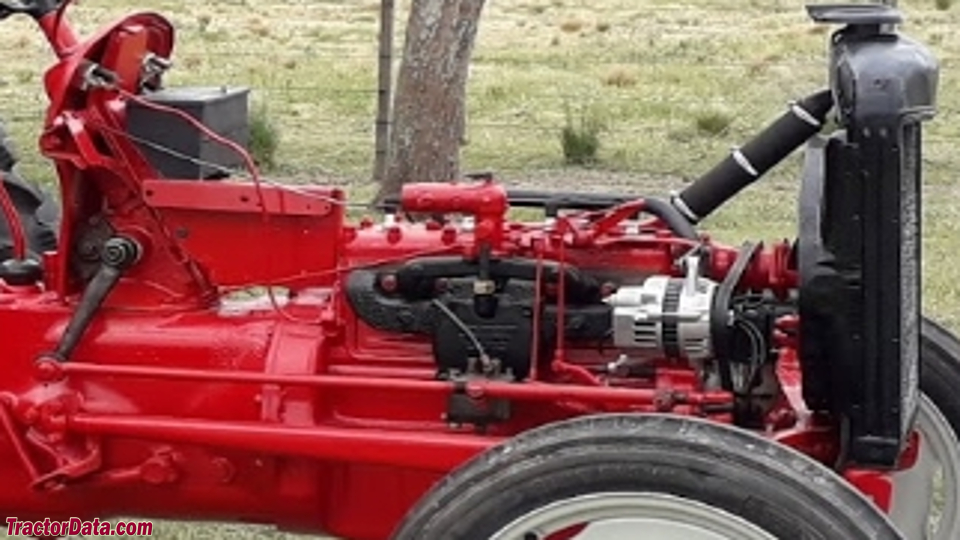

    Ford 8N tractor photo
    1947 - 1952   N Series
    Utility tractor
    Previous model:Ford 2N
    Next model:Ford NAA
    more Ford 8N specifications...






    Engine Detail:

     Ford
     gasoline
     4-cylinder 8-valve
     liquid-cooled
     119.7 ci [2.0 L]
    Bore/Stroke:3.188x3.75 inches [81 x 95 mm]
    Compression:6:1
     6.7:1 (after s/n 85000)
    Rated RPM:2000
    Torque:92 lb-ft [124.8 Nm]
    Torque RPM:1500
    Firing order:1-2-4-3
    Starter volts:6
    Oil capacity:6 qts [5.7 L]
    Coolant capacity:12 qts [11.4 L]
    Sparkplug gap:0.025 inches [0.635 mm]
    Point gap:0.015 inches [0.381 mm]
    Intake valve clearance:0.010 inches [0.254 mm] - 0.012 cold
    Exhaust valve clearance:0.014 inches [0.356 mm] - 0.016 cold

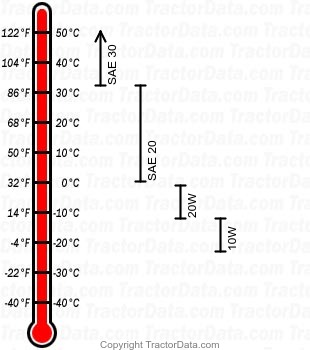

    8N gasoline engine oil chart


    Engine Detail:

    The distillate engine was used on the 8NAN variant.
     Ford
     distillate
     4-cylinder
     liquid-cooled
     119.7 ci [2.0 L]
    Bore/Stroke:3.188x3.75 inches [81 x 95 mm]
    Compression:4.75:1
    Rated RPM:2000
    Firing order:1-2-4-3
    Starter volts:6
    Oil capacity:6 qts [5.7 L]
    Coolant capacity:12 qts [11.4 L]
    8N distillate engine oil chart
