| | 1979 - 1985 |
| Compact Utility tractor | | Hinomoto built |
|
Series map:
5020
5030
25.0hp
31.0hp
| Transmission options |
| 8-speed unsynchronized gear |
| 12-speed unsynchronized gear |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 215mm dry disc
|
| Oil capacity | 26.8 qts
25.4 L
|
| Four gears (1-4) in two ranges (low/high). Tractor must be stopped, and clutch used, to shift gears or range. |

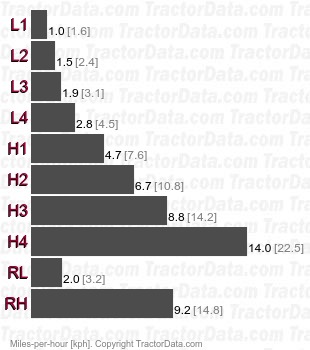

| Speeds |
| With 12.4x24 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 12 forward and 3 reverse
|
| Clutch | 215mm dry disc
|
| Oil capacity | 22 qts
20.8 L
|
| Four gears, plus reverse, with high, low, and creeper ranges. |

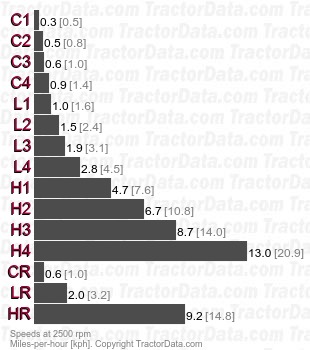

| Speeds |
| With 12.4x24 rear tires. |
|
