Tractors > Allis Chalmers > 5030

Allis Chalmers 5030 - tests

Allis Chalmers 5030 tractor photo
1979 - 1985
Compact Utility tractor
Next model:Deutz-Allis 5230
Series next:Allis Chalmers 190XT
Series back:Allis Chalmers 5020
more Allis Chalmers 5030 specifications...






Nebraska Tractor Test 1271:

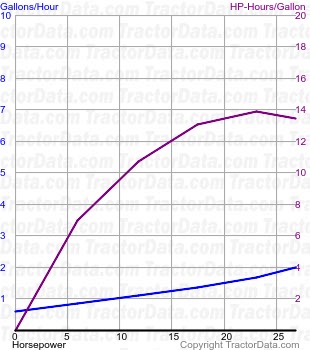

5030 fuel use from test 1271
Test Date:April 6 - 21, 1978
Type:Diesel 8-speed 2WD
PTO power (rated engine speed):26.42 hp [19.7 kW]
PTO fuel use (engine speed):2.0 gal/hour [7.6 l/hour]
PTO power (rated PTO speed):25.61 hp [19.1 kW]
PTO fuel use (PTO speed):1.9 gal/hour [7.2 l/hour]
Drawbar power (max):22.47 hp [16.8 kW]
Drawbar fuel use (max):1.9 gal/hour [7.2 l/hour]
Drawbar pull (max):3,389 lbs [1537 kg]
Max pull gear:3L
Test report:PDF file
