Allis Chalmers 5030 Engine



Allis Chalmers 5030 tractor photo
1979 - 1985
Compact Utility tractor
Hinomoto built
Series map:
5020
5030
25.0hp
31.0hp
Engine Detail
Toyosha S148
diesel
2-cylinder
liquid-cooled
Displacement90.1 ci
1.5 L
Bore/Stroke3.82x3.94 inches
97 x 100 mm
Power31 hp
23.1 kW
Air cleanerdry
Compression23:1
Rated RPM2500
Idle RPM750-2750
Firing order1-2
Starterelectric
Starter volts12
Coolant capacity5.3 qts
5.0 L
Engine Oil

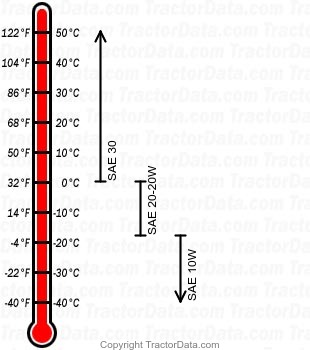

5030 diesel engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
