    Allis Chalmers 170 - transmission




    Allis Chalmers 170 tractor photo I&T Manual: Allis-Chalmers D-10, D-12, D-14, D-15, D-17, 160, 170, 175
    I&T Shop Manual
    Model:170
    Years:1968 - 1973
    Tractor type:Farm/Agricultural tractor
    Original price:$6,887 (1973)
    more Allis Chalmers 170 specifications...


    Transmission:

    Type:Power Director
    Forward:8
    Reverse:2
    Capacity:24 qts [22.7 L]
    Comments:The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.

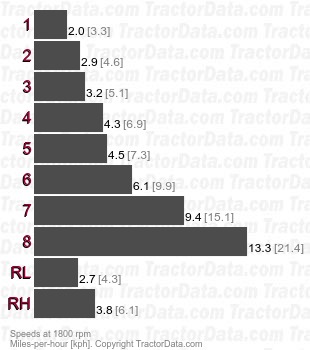

    Speeds:With 16.9x28 rear tires.

    Gear1800 rpm
    12.02mph [3.3kph]
    22.88mph [4.6kph]
    33.18mph [5.1kph]
    44.31mph [6.9kph]
    54.52mph [7.3kph]
    66.13mph [9.9kph]
    79.36mph [15.1kph]
    813.30mph [21.4kph]
    RL2.7mph [4.3kph]
    RH3.8mph [6.1kph]
