Tractors > John Deere > 7800

John Deere 7800 - tests

John Deere 7800 tractor photo
1992 - 1996   7000 Series
Row-Crop tractor
Next model:John Deere 7810
Series back:John Deere 7700
more John Deere 7800 specifications...






OCED Tractor Test 1668:

Nebraska summary:135

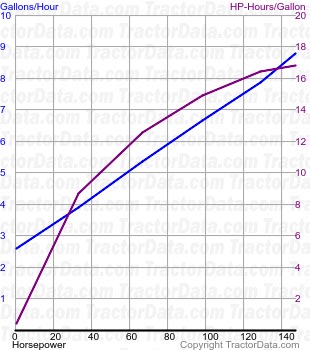

7800 fuel use from test 135
Test Date:May 19 - June 4, 1993
Type:Diesel PowrQuad 4WD
PTO power (max):158.83 hp [118.4 kW]
PTO fuel use (max):9.0 gal/hour [34.1 l/hour]
PTO power (rated engine speed):147.08 hp [109.7 kW]
PTO fuel use (engine speed):8.8 gal/hour [33.3 l/hour]
Drawbar power (max):131.99 hp [98.4 kW]
Drawbar fuel use (max):8.7 gal/hour [32.9 l/hour]
Drawbar pull (max):19,052 lbs [8641 kg]
Max pull gear:A4
Test report:PDF file


OCED Tractor Test 1669:

Nebraska summary:136

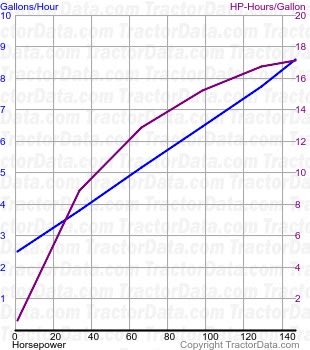

7800 fuel use from test 136
Test Date:May 6 - July 19, 1993
Type:Diesel power shift 4WD
PTO power (max):158.97 hp [118.5 kW]
PTO fuel use (max):8.9 gal/hour [33.7 l/hour]
PTO power (rated engine speed):146.73 hp [109.4 kW]
PTO fuel use (engine speed):8.6 gal/hour [32.6 l/hour]
Drawbar power (max):124.12 hp [92.6 kW]
Drawbar fuel use (max):8.5 gal/hour [32.2 l/hour]
Drawbar pull (max):18,921 lbs [8582 kg]
Max pull gear:5
Test report:PDF file
