John Deere 5200 - transmission

John Deere 5200 tractor photo
1992 - 1997   5000 Utility Series
Utility tractor
Next model:John Deere 5210
Series next:John Deere 5300
more John Deere 5200 specifications...






Transmission:

Transmission:John Deere Collar Shift
Type:unsynchronized gear
Gears:9 forward and 3 reverse
Clutch:dry disc
Three gears (1-3), plus reverse, with three ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.
Speeds:

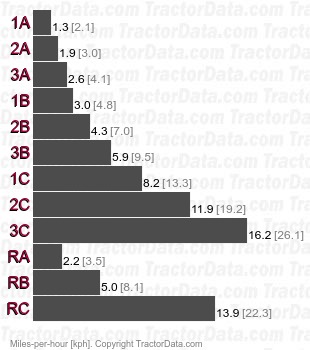

5200 Collar Shift unsynchronized gear speeds


Transmission:

Transmission:John Deere Top-Shaft Synchronized
Type:partially synchronized
Gears:9 forward and 3 reverse
Clutch:dry disc
Three gears (1-3), plus reverse, in three ranges (A-C). Gear shifts are synchronized using the clutch. Tractor must be stopped to shift range.
Speeds:
5200 Top-Shaft Synchronized partially synchronized speeds


Transmission:

Transmission:John Deere TSS Reverser
Type:power shuttle
Gears:12 forward and reverse
Clutch:wet disc
Four gears (1-4) in three ranges (A-C) with left-hand reverser lever.
