Tractors > John Deere > 970

John Deere 970 - engine

John Deere 970 tractor photo
1989 - 1998   70 Compact Series
Compact Utility tractor
Previous model:John Deere 950
Next model:John Deere 4500
Series next:John Deere 1070
Series back:John Deere 870
more John Deere 970 specifications...






Engine Detail:

 Yanmar 4TN82
 diesel
 4-cylinder
 liquid-cooled
 110.8 ci [1.8 L]
Bore/Stroke:3.22x3.39 inches [82 x 86 mm]
Fuel system:direct injection
Air cleaner:dry
Compression:18.1:1
Rated RPM:2600
Operating RPM:800-2775
Starter volts:12

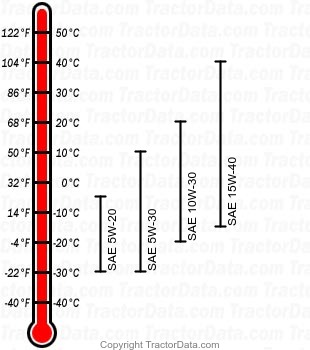

Oil capacity:5.6 qts [5.3 L]
Oil change:200 h
Coolant capacity:6.1 qts [5.8 L]
