John Deere 870 Transmission


John Deere 870 tractor photo
1989 - 1998
70 Compact Series
Compact Utility tractor
Yanmar built
Series map:
770
870
970
23.0hp
28.0hp
33.0hp
Transmission options
9-speed unsynchronized gear
9-speed partially synchronized
Transmission
Typeunsynchronized gear
Gears9 forward and 3 reverse
Clutch225mm dry two-stage
Oil capacity22 qts
20.8 L
Three speeds (1-3) plus reverse (R) with three ranges (1-3). The collar shift was the standard transmission. Tractor must be stopped, and clutch used, to shift gears or ranges.

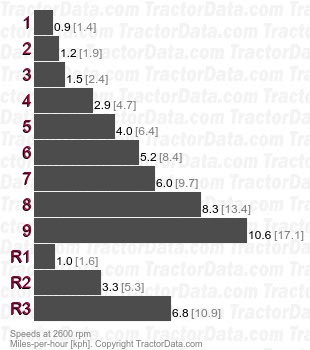

Speeds
With 12.4-28 R1 rear tires.
870  unsynchronized gear speeds
Transmission
Typepartially synchronized
Gears9 forward and 3 reverse
Clutch225mm dry two-stage
Oil capacity22 qts
20.8 L
Three speeds, plus reverse, in three ranges. Speeds may be shifted on the move. Tractor must be stopped to shift ranges.
Speeds
With 12.4-28 R1 rear tires.
870  partially synchronized speeds
