| | 1989 - 1998 |
| 70 Compact Series | | Compact Utility tractor | | Yanmar built |
|
Series map:
770
870
970
23.0hp
28.0hp
33.0hp
| Engine Detail |
| Yanmar 3TN84 |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 87.3 ci
1.4 L
|
| Bore/Stroke | 3.31x3.39 inches
84 x 86 mm
|
| Fuel system | direct injection
|
| Air cleaner | dry with safety element
|
| Pre-heating | air intake heater
|
| Compression | 17.8:1
|
| Rated RPM | 2600
|
| Operating RPM | 800-2775
|
| Starter volts | 12
|
| Coolant capacity | 5.5 qts
5.2 L
|

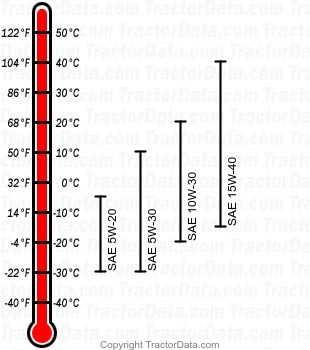

| Engine Oil |
|
| Oil capacity | 5.1 qts
4.8 L
|
| Oil change | 200 h
|
