| | 1989 - 1997 |
| 70 Compact Series | | Compact Utility tractor | | Yanmar built |
|
Series map:
670
770
19.3hp
23.0hp
| Transmission |
| Type | unsynchronized gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 215mm dry disc
|
| Oil capacity | 16 qts
15.1 L
|
| Four gears, plus reverse, in two ranges. |

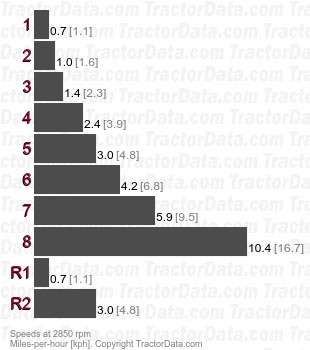

| Speeds |
| With 9.5-16 rear tires. |
|
