TractorData.com - information on all makes and models of tractors
Tractors > John Deere > 8560

John Deere 8560 - tests

John Deere 8560 tractor photo
1989 - 1993   8060 Series
Four-wheel Drive (4WD) tractor
Previous model:John Deere 8450
Next model:John Deere 8570
Series next:John Deere 8760
more John Deere 8560 specifications...






OCED Tractor Test 1623:

Nebraska summary:061

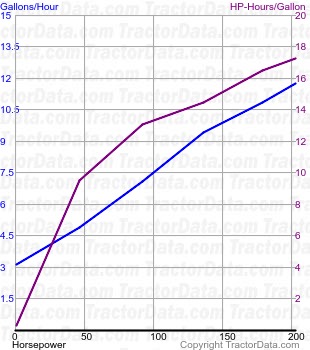

8560 fuel use from test 061
Test Date:May 1989 - 1989,
Type:Diesel PowrSync 4WD
PTO power (max):210.25 hp [156.8 kW]
PTO fuel use (max):11.7 gal/hour [44.3 l/hour]
PTO power (rated engine speed):202.65 hp [151.1 kW]
PTO fuel use (engine speed):11.8 gal/hour [44.7 l/hour]
PTO power (rated PTO speed):210.12 hp [156.7 kW]
PTO fuel use (PTO speed):11.7 gal/hour [44.3 l/hour]
Drawbar power (max):180.74 hp [134.8 kW]
Drawbar fuel use (max):11.8 gal/hour [44.7 l/hour]
Drawbar pull (max):32,166 lbs [14590 kg]
Max pull gear:A1
Test report:PDF file
