Tractors > John Deere > 755

John Deere 755 Engine



John Deere 755 tractor photo
1986 - 1998
55 Compact Series
Compact Utility tractor
Series map:
655
755
855
16.0hp
20.0hp
24.0hp
Engine Detail
Yanmar 3TNA72UK
diesel
3-cylinder
liquid-cooled inline
Displacement53.6 ci
0.9 L
Bore/Stroke2.835x2.835 inches
72 x 72 mm
Power20 hp
14.9 kW
Fuel systemindirect injection
Air cleanerdry element
Pre-heatingglow plugs
Compression22.3:1
Rated RPM3200
Operating RPM1400-3425
Starter volts12
Coolant capacity4 qts
3.8 L
Engine Oil

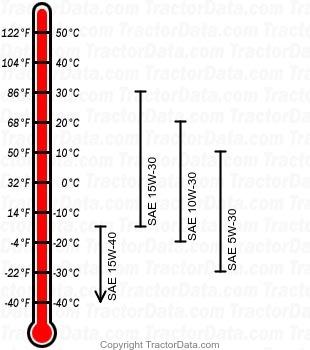

755 diesel engine oil chart
Oil capacity2.86 qts
2.7 L
