John Deere 4650 Engine


John Deere 4650 tractor photo
1983 - 1988
50 Series
Row-Crop tractor
Series map:
4450
4650
4850
158.2hp
187.7hp
207.9hp
Engine Detail
John Deere
intercooled turbocharged diesel
6-cylinder
liquid-cooled
Displacement466 ci
7.6 L
Bore/Stroke4.56x4.75 inches
116 x 121 mm
Power187.7 hp
140.0 kW
Air cleanerdry
Compression15.8:1
Rated RPM2200
Firing order1-5-3-6-2-4
Starter volts12
Oil capacity21 qts
19.9 L
Coolant capacity32 qts
30.3 L
John Deere 4650 Engine

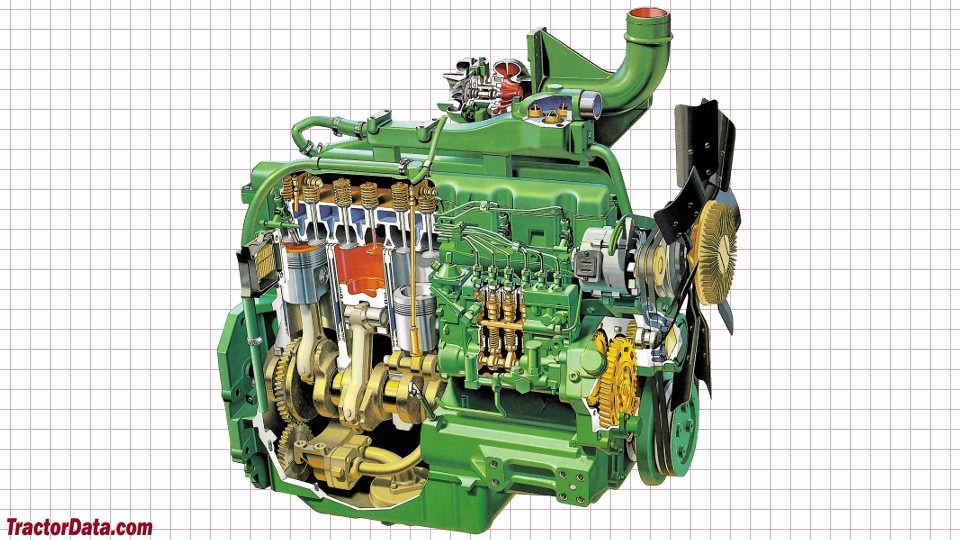

John Deere 4650 engine image
