John Deere 750 Transmission


John Deere 750 tractor photo
1981 - 1988
50 Compact Series
Compact Utility tractor
Yanmar built
Series map:
650
750
850
17.0hp
20.0hp
25.0hp
Transmission
Typegear
Gears8 forward and 2 reverse
Clutch200mm dry disc
Oil capacity15 qts
14.2 L
Four gears, plus reverse, in two ranges.

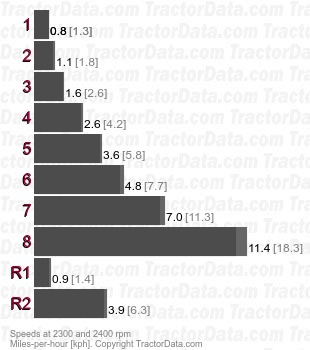

Speeds
With 9.5-16 rear tires.
750  gear speeds

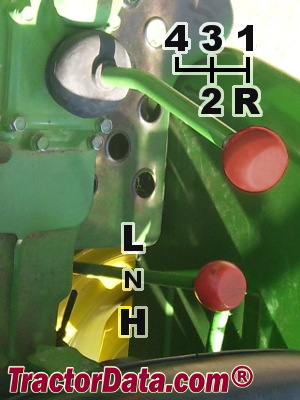

Shift Pattern
John Deere 750 transmission controls
