John Deere 750 Tests


John Deere 750 tractor photo
1981 - 1988
50 Compact Series
Compact Utility tractor
Yanmar built
Series map:
650
750
850
17.0hp
20.0hp
25.0hp
Nebraska Tractor Test 1504

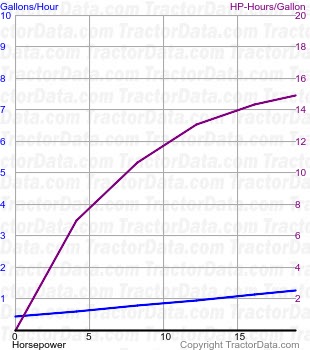

750 fuel use from test 1504
Nebraska Tractor Test 1504
Diesel 8-speed 2WD
October 31 - November 10, 1983
Link: Nebraska Tractor Test 1504 file
PTO performance
Power at rated engine speed18.54 hp
13.8 kW
Fuel use1.2 gal/hour
4.5 l/hour
Power at rated PTO speed19.80 hp
14.8 kW
Fuel use1.3 gal/hour
4.9 l/hour
Drawbar performance
Max power15.30 hp
11.4 kW
Fuel use1.2 gal/hour
4.5 l/hour
Gear 7 used for power test.
Max pull1,661 lbs
753 kg
Gear 5 used for pull test.
