Tractors > John Deere > 2940

John Deere 2940 Engine



John Deere 2940 tractor photo
1980 - 1982
2040 Series
Utility tractor
Series map:
2640
2940
77.8hp*
91.1hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere
diesel
6-cylinder
liquid-cooled
Displacement359 ci
5.9 L
Bore/Stroke4.19x4.33 inches
106 x 110 mm
Compression16.8:1
Rated RPM2500
Idle RPM800-2660
Operating RPM1500-2500
Torque235 lb-ft
318.7 Nm
Torque RPM1400
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity20 qts
18.9 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

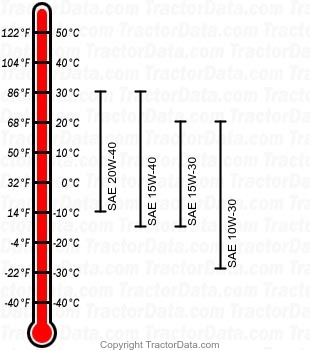

2940 diesel engine oil chart
Oil capacity12 qts
11.4 L
Oil change100 h
