John Deere 950 Tests


John Deere 950 tractor photo
1978 - 1989
50 Compact Series
Compact Utility tractor
Yanmar built
Series map:
850
950
1050
25.0hp
31.0hp
37.0hp
Nebraska Tractor Test 1281

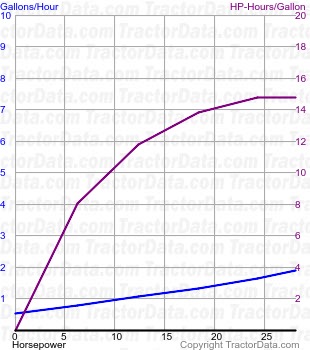

950 fuel use from test 1281
Nebraska Tractor Test 1281
Diesel 8-speed 2WD
June 12 - 16, 1978
Link: Nebraska Tractor Test 1281 file
PTO performance
Power at rated engine speed27.36 hp
20.4 kW
Fuel use1.8 gal/hour
6.8 l/hour
Power at rated PTO speed28.05 hp
20.9 kW
Fuel use1.9 gal/hour
7.2 l/hour
Drawbar performance
Max power22.12 hp
16.5 kW
Fuel use1.8 gal/hour
6.8 l/hour
Gear 6 used for power test.
Max pull3,056 lbs
1386 kg
Gear 4 used for pull test.
