    John Deere 6030 - tests

    John Deere 6030 tractor photo  I&T Manual: Deere 6030, 3010, 3020, 4010, 4020, 5010, 5020, 4000, 4320, 4520, 4620
    I&T Shop Manual
    Production years:1972 - 1977
    Previous model:John Deere 5020
    Tractor type:Farm/Agricultural tractor
    more John Deere 6030 specifications...






    Nebraska Tractor Test 1100:

    Test Date:May 23 - June 2, 1972
    Type:8-speed 2WD
    Engine:turbo diesel
    PTO power (rated engine speed):175.99 hp [131.2 kW]

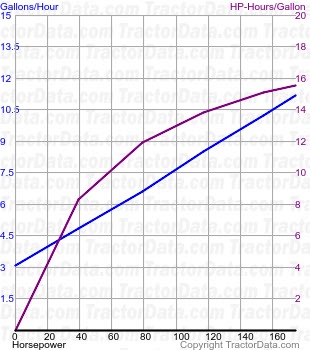

    PTO fuel use (engine speed):11.1 gal/hour [42.0 l/hour]
    Drawbar power (max):148.70 hp [110.9 kW]
    Drawbar fuel use (max):11.0 gal/hour [41.6 l/hour]
    Drawbar pull (max):15,303 lbs [6941 kg]
    Max pull gear:2
    Test report:PDF file
