John Deere 6030 Engine


John Deere 6030 tractor photo
1972 - 1977
Generation II Series
Row-Crop tractor
Series map:
6030
194.4hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere
turbocharged intercooled diesel
6-cylinder
liquid-cooled inline
Displacement531 ci
8.7 L
Bore/Stroke4.75x5.00 inches
121 x 127 mm
Air cleanerdual paper elements with aspirator
Compression15.4:1
Rated RPM2100
Firing order1-5-3-6-2-4
Starter volts12
Oil capacity26 qts
24.6 L
Coolant capacity40 qts
37.9 L
John Deere 6030 Engine

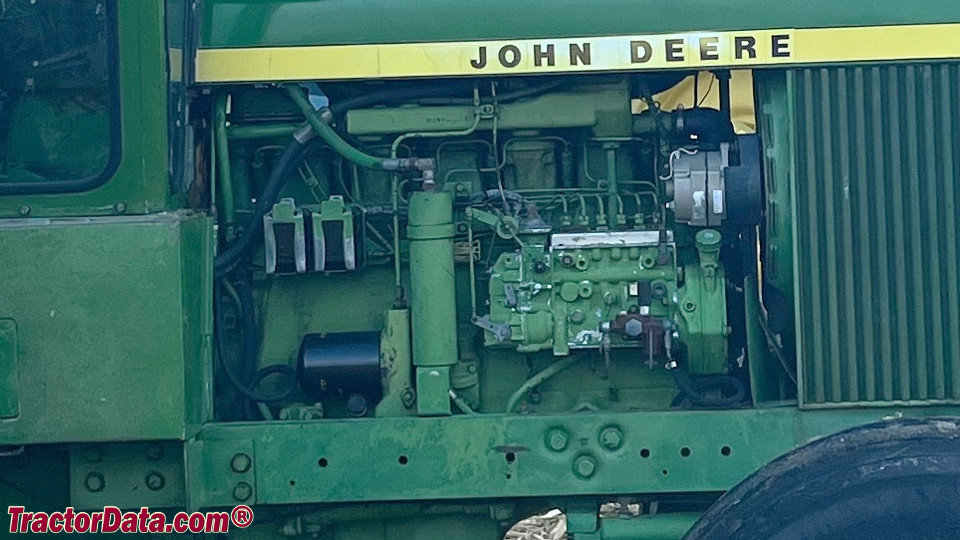

John Deere 6030 engine image
Image courtesy of Luke Ulrich
Engine Detail
John Deere
diesel
6-cylinder
liquid-cooled inline
The naturally-aspirated 531 was an optional engine on the John Deere 6030 offered during the 1973 model year. The naturally-aspirated engine was dropped due to poor sales.
Displacement531 ci
8.7 L
Bore/Stroke4.75x5.00 inches
121 x 127 mm
Compression16.5:1
Rated RPM2200
Firing order1-5-3-6-2-4
Starter volts12
Oil capacity20 qts
18.9 L
