Tractors > John Deere > 4320

John Deere 4320 - tests

John Deere 4320 tractor photo
1971 - 1972   New Generation Series
Row-Crop tractor
Series back:John Deere 4020
more John Deere 4320 specifications...






Nebraska Tractor Test 1050:

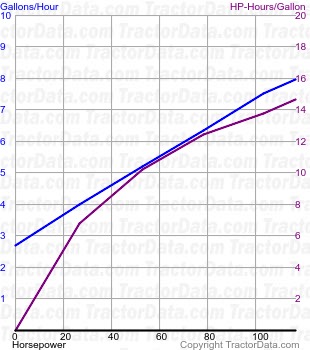

4320 fuel use from test 1050
Test Date:September 21 - 26, 1970
Type:Diesel Syncro-Range 2WD
PTO power (rated engine speed):116.55 hp [86.9 kW]
PTO fuel use (engine speed):8.0 gal/hour [30.3 l/hour]
PTO power (rated PTO speed):108.02 hp [80.6 kW]
PTO fuel use (PTO speed):7.0 gal/hour [26.5 l/hour]
Drawbar power (max):101.7 hp [75.8 kW]
Drawbar fuel use (max):8.0 gal/hour [30.3 l/hour]
Drawbar pull (max):11,783 lbs [5344 kg]
Max pull gear:2
Test report:PDF file
