John Deere 4000 Tests


John Deere 4000 tractor photo
1969 - 1972
New Generation Series
Row-Crop tractor
Series map:
3020
4000
4020
72.5hp*
107.7hp*
101.3hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1023

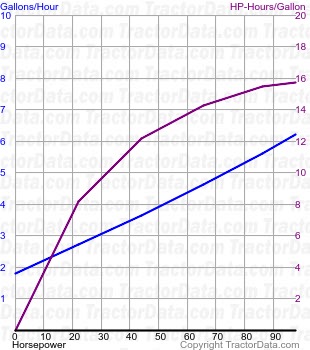

4000 fuel use from test 1023
Nebraska Tractor Test 1023
Diesel 8-speed 2WD
September 30 - October 14, 1969
Link: Nebraska Tractor Test 1023 file
PTO performance
Power at rated engine speed96.89 hp
72.3 kW
Fuel use6.2 gal/hour
23.5 l/hour
Power at rated PTO speed88.88 hp
66.3 kW
Fuel use5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power82.59 hp
61.6 kW
Fuel use6.2 gal/hour
23.5 l/hour
Gear 5 used for power test.
Max pull8215 lbs
3726 kg
Gear 3 used for pull test.
