    John Deere 4020 - dimensions

    John Deere 4020 tractor photo
    1963 - 1972   New Generation Series
    Row-Crop tractor
    Previous model:John Deere 4010
    Next model:John Deere 4230
    Larger:John Deere 4320
    Smaller:John Deere 4000
    more John Deere 4020 specifications...






    John Deere 4020 Tires:

    Ag front:6.00-16 (row crop)
     7.50-18 (standard)
    Ag rear:15.5-38 (row crop)
     18.4-34 (standard)


    Dimensions:

    Weight (shipping):8,436 lbs [3826 kg] (diesel syncro)
     8,225 lbs [3730 kg] (gas syncro)
     8,319 lbs [3773 kg] (LP syncro)
    Weight (operating):8,645 lbs [3921 kg] (gas syncro)
     8,945 lbs [4057 kg] (diesel syncro)
     9,240 lbs [4191 kg] (gas powershift)
     9,560 lbs [4336 kg] (diesel powershift)
    Weight (ballasted):13,980 lbs [6341 kg]
    Row crop Wheelbase:97.5 inches [247 cm]
    Standard Wheelbase:100.25 inches [254 cm]
    Length:151 inches [383 cm]
    Width:89.6 inches [227 cm]
    Row-crop Height (steering wheel):77.9 inches [197 cm]
    Standard Height (steering wheel):78.25 inches [198 cm]
    Standard Height (exhaust):88.25 inches [224 cm]
    Row crop Height (exhaust):88.75 inches [225 cm]
    Rear axle:Regular axle: 3.375 by 91 inches [85x2311 mm]
    Long axle: 3.375 by 104 inches [85x2641 mm]
    Extra long axle: 3.375 by 112 inches [85x2844 mm]
    Front tread:48.5 to 82.25 inches
    [123 to 208 cm]
    Rear tread:60 to 91 inches
    [152 to 231 cm]
    66 to 97 inches (long axle)
    [167 to 246 cm] (long axle)
    67 to 105 inches (extra long axle)
    [170 to 266 cm] (extra long axle)
    2WD turn radius:9.9 feet [3.0 m] (row crop)
     10.9 feet [3.3 m] (standard)

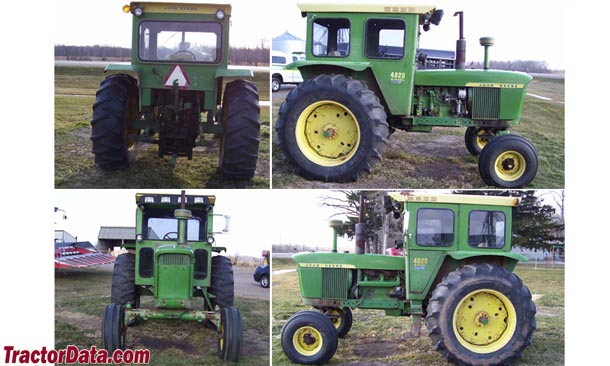

    John Deere 4020 walk around photo
