Tractors > John Deere > 3010

John Deere 3010 Tests



John Deere 3010 tractor photo
1961 - 1963
New Generation Series
Row-Crop tractor
Series map:
2010
3010
4010
51.9hp*
61.2hp*
88.9hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 762: diesel 8-speed 2WD
NTTL 763: gasoline 8-speed 2WD
NTTL 764: LP gas 8-speed 2WD
Nebraska Tractor Test 762

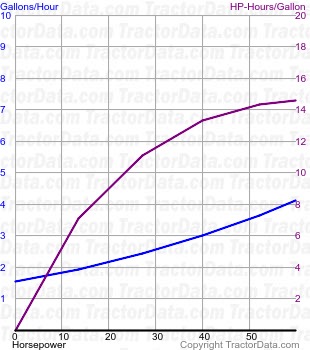

3010 fuel use from test 762
Nebraska Tractor Test 762
Diesel 8-speed 2WD
September 19 - 24, 1960
Link: Nebraska Tractor Test 762 file
PTO performance
Power at rated engine speed59.44 hp
44.3 kW
Fuel use4.1 gal/hour
15.5 l/hour
Power at rated PTO speed55.29 hp
41.2 kW
Fuel use3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power52.77 hp
39.4 kW
Fuel use4.1 gal/hour
15.5 l/hour
Gear 4 used for power test.
Max pull6,323 lbs
2868 kg
Gear 6,323 used for pull test.
Nebraska Tractor Test 763

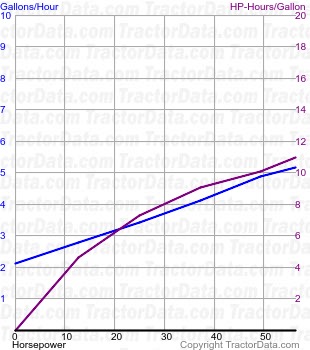

3010 fuel use from test 763
Nebraska Tractor Test 763
Gasoline 8-speed 2WD
September 24 - 28, 1960
Link: Nebraska Tractor Test 763 file
PTO performance
Power at rated engine speed55.09 hp
41.1 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed50.54 hp
37.7 kW
Fuel use4.8 gal/hour
18.2 l/hour
Drawbar performance
Max power50.98 hp
38.0 kW
Fuel use5.2 gal/hour
19.7 l/hour
Gear 4 used for power test.
Max pull6,660 lbs
3020 kg
Gear 2 used for pull test.
Nebraska Tractor Test 764

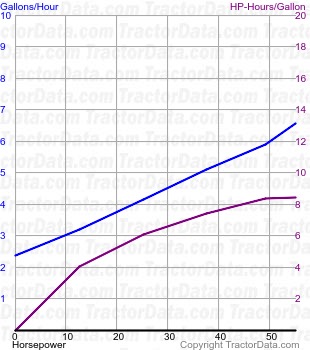

3010 fuel use from test 764
Nebraska Tractor Test 764
LP gas 8-speed 2WD
September 24 - 29, 1960
Link: Nebraska Tractor Test 764 file
PTO performance
Power at rated engine speed55.39 hp
41.3 kW
Fuel use6.5 gal/hour
24.6 l/hour
Power at rated PTO speed50.80 hp
37.9 kW
Fuel use5.9 gal/hour
22.3 l/hour
Drawbar performance
Max power49.22 hp
36.7 kW
Fuel use6.5 gal/hour
24.6 l/hour
Gear 4 used for power test.
Max pull6,598 lbs
2992 kg
Gear 2 used for pull test.
