    John Deere 730 - transmission

    John Deere 730 tractor photo I&T Manual: Deere 520, 530, 620, 630, 720, 730
    I&T Shop Manual
    Production years:1958 - 1961
    Previous model:John Deere 720
    Tractor type:Farm/Agricultural tractor
    Larger:John Deere 830
    Smaller:John Deere 630
    more John Deere 730 specifications...






    Transmission:

    Manufacturer:John Deere
    Type:unsynchronized gear
    Forward:6
    Reverse:1
    Oil capacity:-unknown-

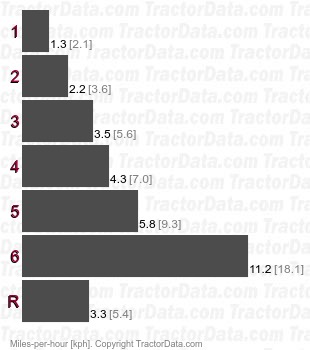

    Speeds:With 13.6-38 rear tires.

    Gear
    11.33mph [2.1kph]
    22.25mph [3.6kph]
    33.5mph [5.6kph]
    44.33mph [7.0kph]
    55.75mph [9.3kph]
    611.25mph [18.1kph]
    R3.33mph [5.4kph]



    Transmission:

    Manufacturer:John Deere
    Type:unsynchronized gear
    Forward:6
    Reverse:1
    Oil capacity:-unknown-
    Comments:The "optional 5th" transmission used a different shift quadrant (AR 20133R) than the standard transmission. Sixth and reverse kept position, but the other gears changed location.

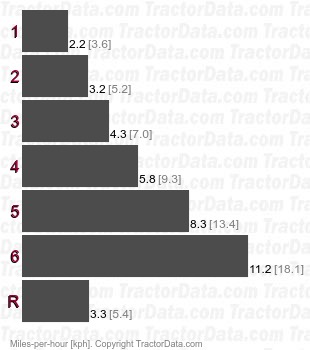

    Speeds:With 13.6-38 rear tires.

    Gear
    12.25mph [3.6kph]
    23.25mph [5.2kph]
    34.33mph [7.0kph]
    45.75mph [9.3kph]
    58.33mph [13.4kph]
    611.25mph [18.1kph]
    R3.33mph [5.4kph]
