| | 1956 - 1958 |
| Two-Cylinder 20 Series | | Row-Crop tractor |
|
Series map:
620
720
820
53.3hp*
65.6hp*
74.4hp*
*Estimated engine power for comparison only.
| Transmission |
| Manufacturer | John Deere
|
| Type | unsynchronized gear
|
| Gears | 6 forward and 1 reverse
|
| Clutch | dry
|
| Oil capacity | 30 qts
28.4 L
|
| Oil type | | 0oF [-17oC]↑ | : SAE 90 | | 0oF [-17oC]↓ | : SAE 80 |
|

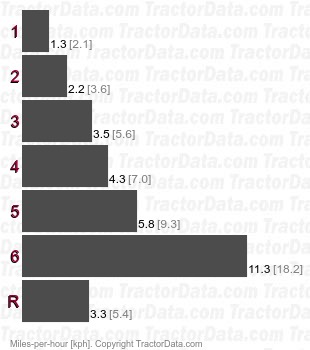

| Speeds |
| With 13.6-38 rear tires. |
|
| Shift Pattern |
 |

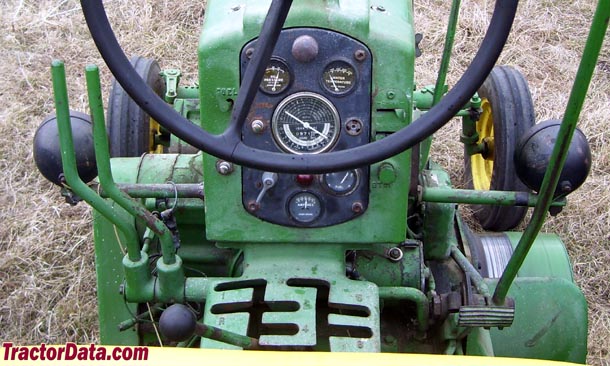

| 720 Transmission Controls |
 |
| 1 | gear shift
|
| 2 | pony motor clutch
|
| 3 | decompression
|
| 4 | diesel throttle
|
| 5 | clutch
|
| 6 | pony motor throttle
|
