Tractors > John Deere > 40

John Deere 40 - engine

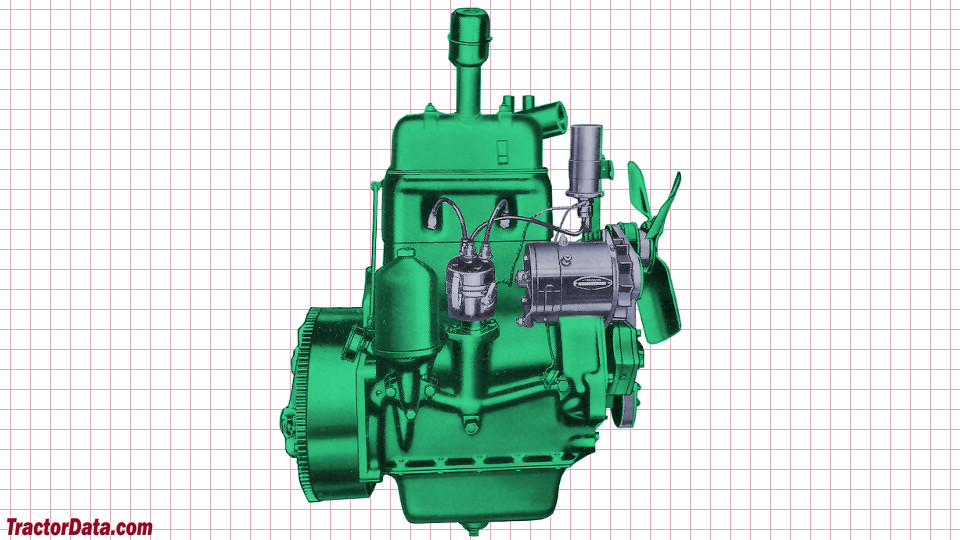

John Deere 40 tractor photo
1953 - 1955
Utility tractor
Previous model:John Deere M
Next model:John Deere 420
Series next:John Deere 50
more John Deere 40 specifications...






Engine Detail:

 John Deere
 gasoline
 2-cylinder 4-valve
 liquid-cooled
 100.5 ci [1.6 L]
Bore/Stroke:4.00x4.00 inches [102 x 102 mm]
Air cleaner:oil bath
Compression:6.5:1
Rated RPM:1850
Firing order:1-2
Starter volts:6
Oil capacity:5 qts [4.7 L]
Coolant capacity:14 qts [13.2 L]


Engine Detail:

 John Deere
 all-fuel
 2-cylinder 4-valve
 liquid-cooled
 100.5 ci [1.6 L]
Bore/Stroke:4.00x4.00 inches [102 x 102 mm]
Air cleaner:oil bath
Compression:6.5:1
Rated RPM:1850
Firing order:1-2
Starter volts:6
Oil capacity:5 qts [4.7 L]
Sparkplug gap:0.025 inches [0.635 mm]
Point gap:0.022 inches [0.559 mm]
Intake valve clearance:0.012 inches [0.305 mm] (cold)
Exhaust valve clearance:0.012 inches [0.305 mm] (cold)
